Tube TL50

The thermal imaging riflescope is often compared by experts due to its strong performance with the Pulsar. Compared to the Thermion models, the vanadium oxide sensor with a resolution of 384 x 288 pixels and a density of 12 micrometers offers very good observation possibilities in all weather conditions. The fast 50 millimeter lens gives colors and contours the necessary sharpness and contrast.

OLED display

The one within Infiray The screen in the Tube TL50 is equipped with OLEDs. These consume little power and can display colours very vividly. Other advantages are the insensitivity to cold and heat, the long life and the display of unlit segments, as these do not light up grey as with LCD screens.

Simple operation, variable use

The expansion takes place on Infiray The Tube TL50 is extremely comfortable thanks to a rotary knob on the tower of the cabinet, which gives tactile feedback via grids. Adjusting the diopter is just as easy.

It is no problem to use it for different rifles, because the profiles can be saved, so that the model only needs to be zoomed in once. Thanks to the 30 millimeter center tube, installation is possible on a large number of models, even if additional parts are present.

Via wifi the spectator can share his observation with several colleagues, so that they can follow the action live on their smartphone or tablet. All you need is a free app, which you can find below.

The observation can also be saved: the built-in video recorder is 32 gigabytes in size, large enough to record thousands of clips and photos.

The 15-hour battery life is achieved by a built-in and removable battery. In addition, a USB power bank can be used to extend the battery life.

For an optimal power supply, it is worth ordering the right replacement battery right away. The built-in battery must never be completely empty.

Overview
Infiray Tube TL50 – improved new edition of TL35 with improved hardware and software, 2600 m range, OLED display, 32 GB recorder, WiFi, 3 – 12x optical magnification, 13 m field of view.

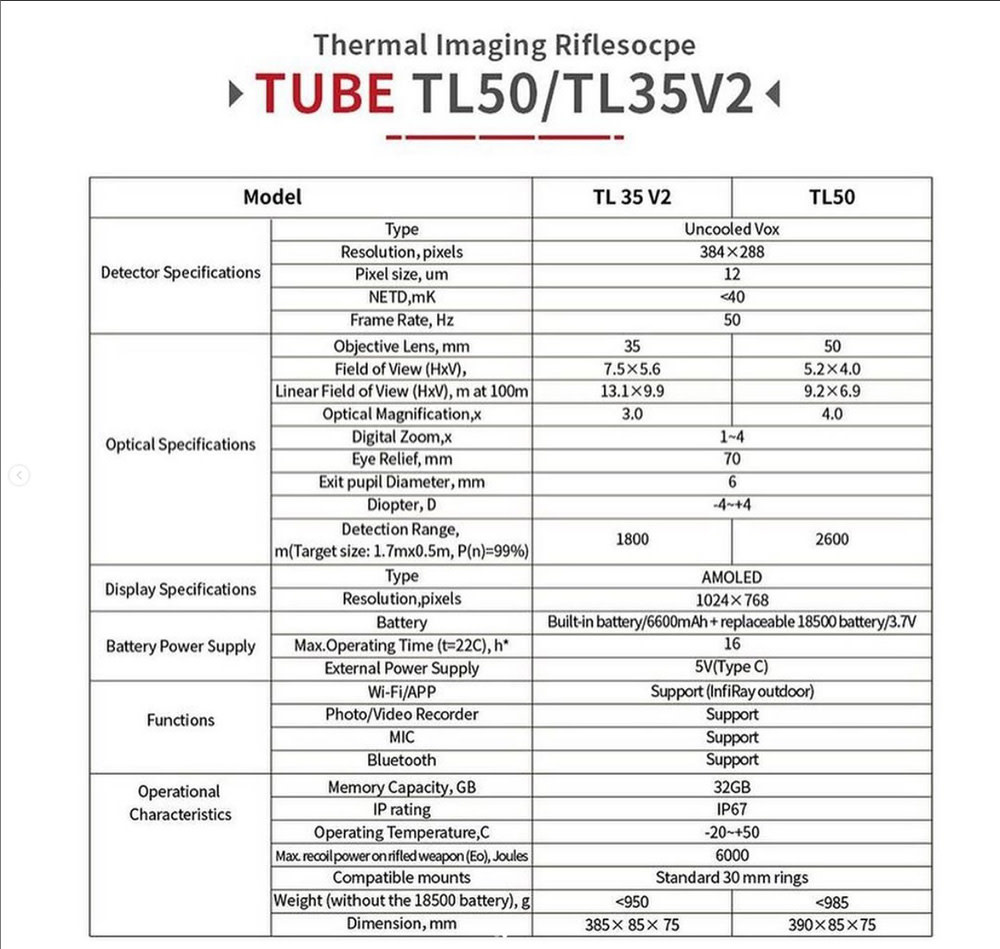

specifications:

• Sensor: VOx
• Sensor resolution: 384 x 288 pixels
• Sensor distance: 12 µm
• Sensor sensitivity: < 40 mk (NETD)
• Screen type: OLED
• Screen resolution: 1024 x 768 pixels
• Frame rate: 50 Hz
• Lens: 50mm
• Aperture: 1.0
• Field of view: 5.2 × 4.0°
• Field of view at 100 m: 9.2 x 6.9 m (W x H)
• Magnification: 4x (optical)
• Digital zoom: 1 – 4 x
• Detection range: 2600 m (human)
• Internal Storage: 32 GB
• WLAN (Wi-Fi): yes
• App support: yes
• Photo/video/sound recording: yes/yes/yes
• Operating temperature: -20 – 50°C
• Protection class: IP67
• USB interface: Type-C
• Power: 5V USB-C
• Battery: 6600mAh battery (internal), 18500 battery (external)
• Battery life: 15 hours
• Dimensions: 390 x 85 x 75 mm
• Weight: 985 g
